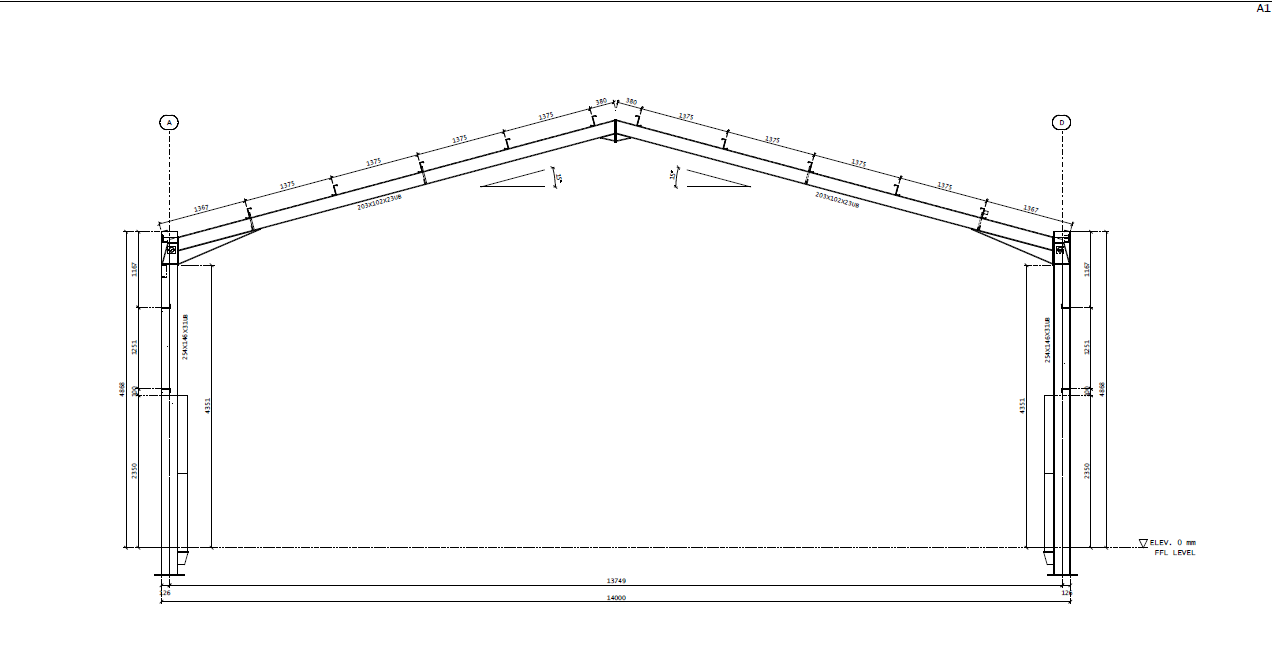

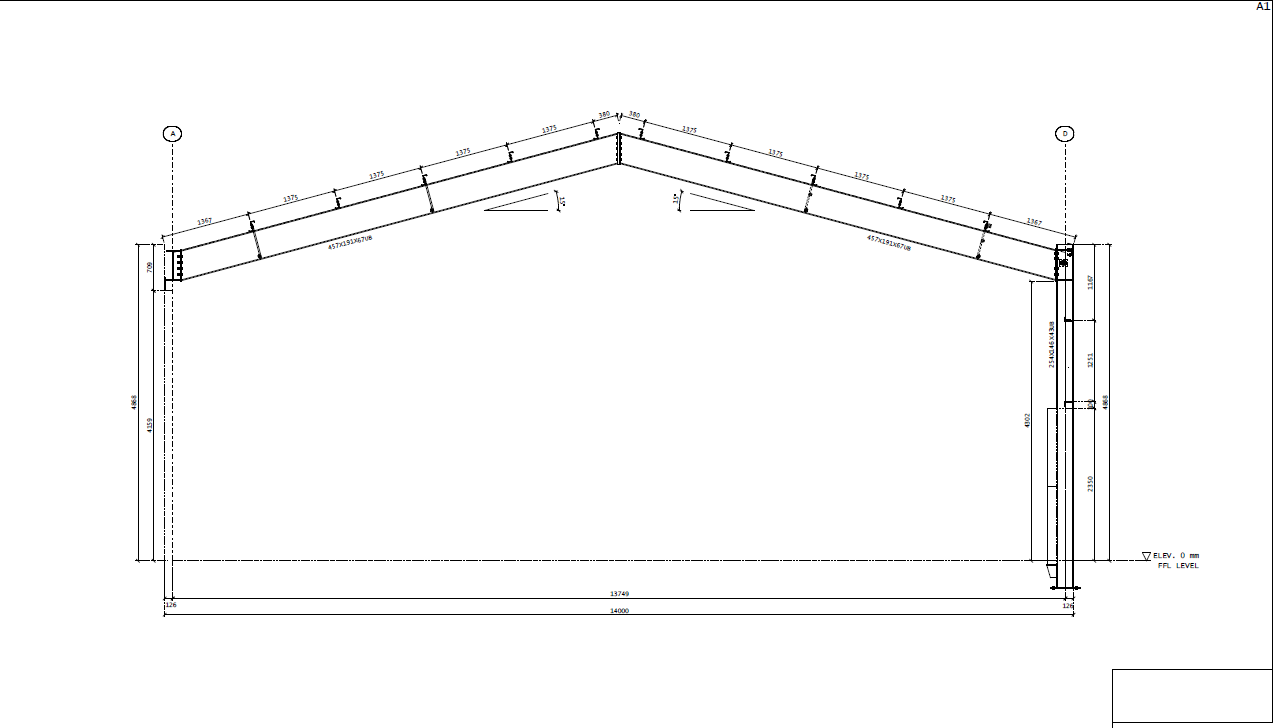

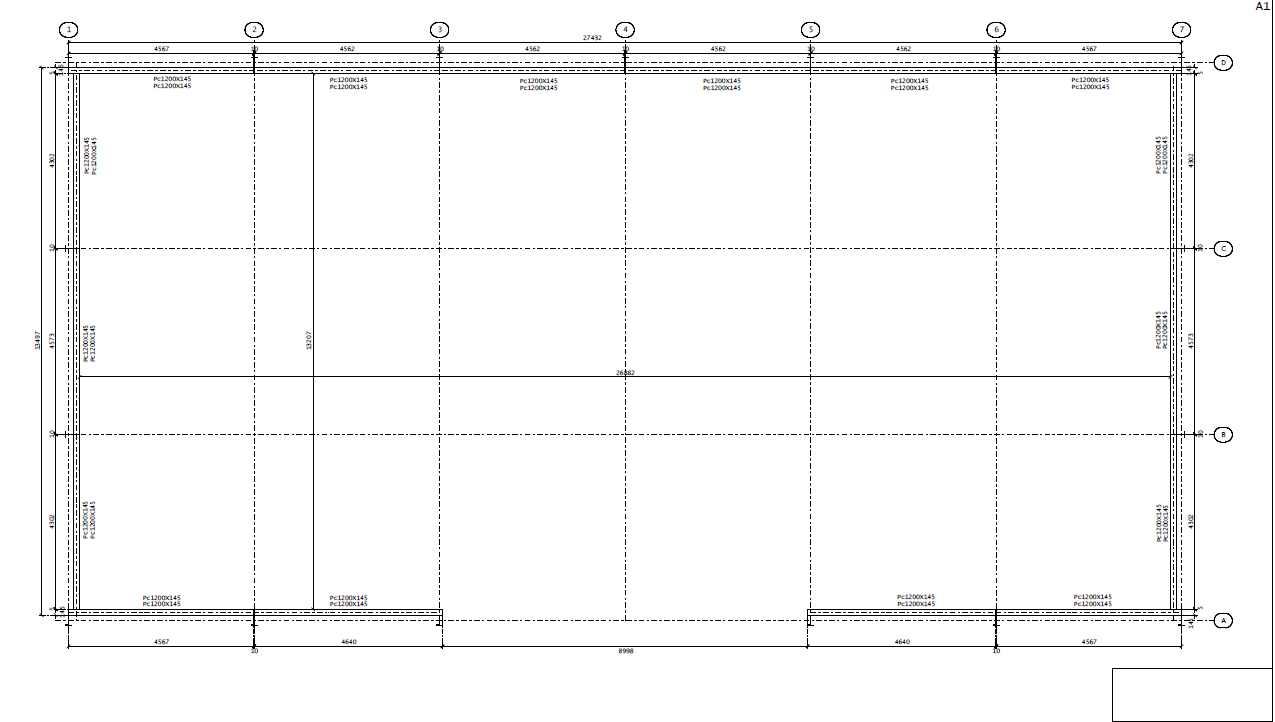

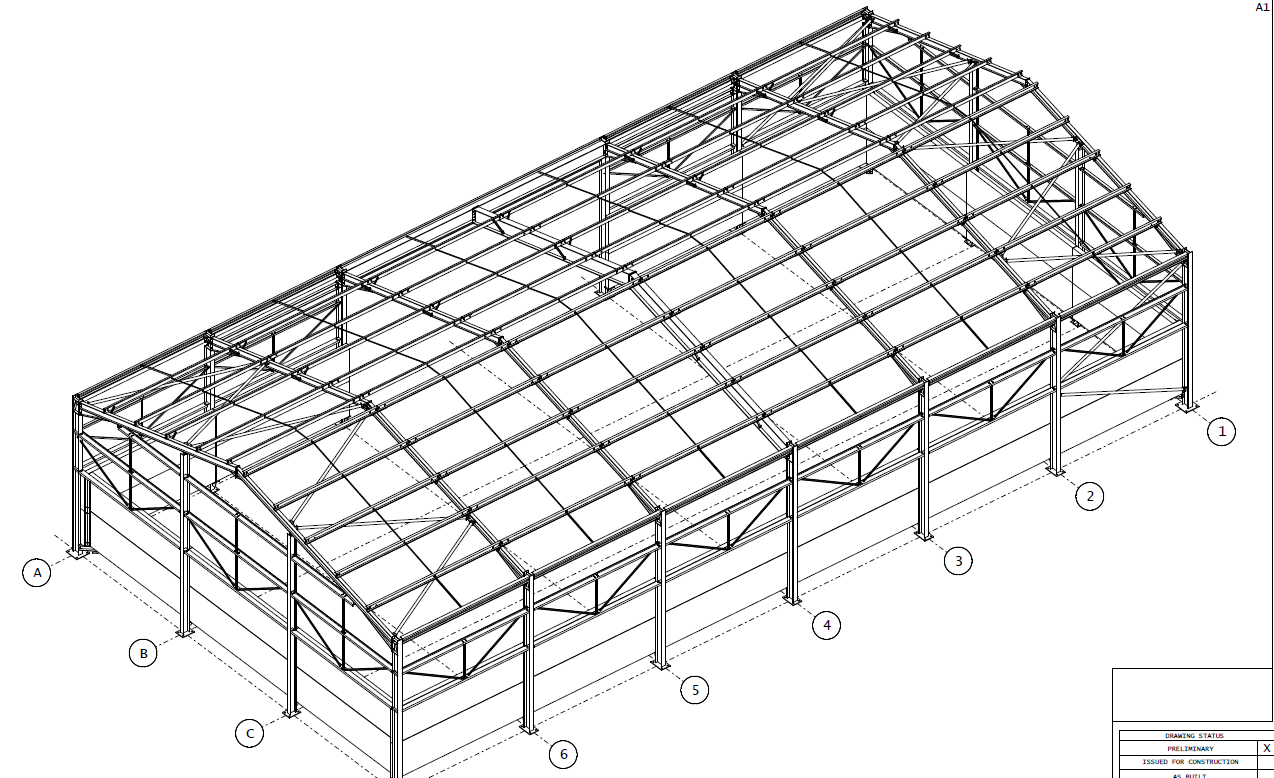

27.4m x 13.7m – Galvanised Steel Portal Frame Only:
Building Size and dimensions: -
Span: 14.0m wide
Length: 27.578m long
Height: 4.868m to the eaves
Bay Sizes: 6 No at 4.572m
Roof Pitch: 15 degrees
Client Specific Requirements:
Door frame to allow lockable sliding door to prevent vandalism.
Structural steelwork is hot dipped galvanised in accordance with BS EN ISO 1461:2022.
Steel Work Specification:
The steel work frame is to be formed of the following section sizes:
Main Columns - 254 x 146 x 31 Kg/m (254 x 146 x 43 Kg/m to opposite side of door)
Intermediate Columns - 203 x 133 x 25 Kg/m
Rafters - 203 x 102 x 23 Kg/m (457 x 151 x 67 Kg/m at centre of door)

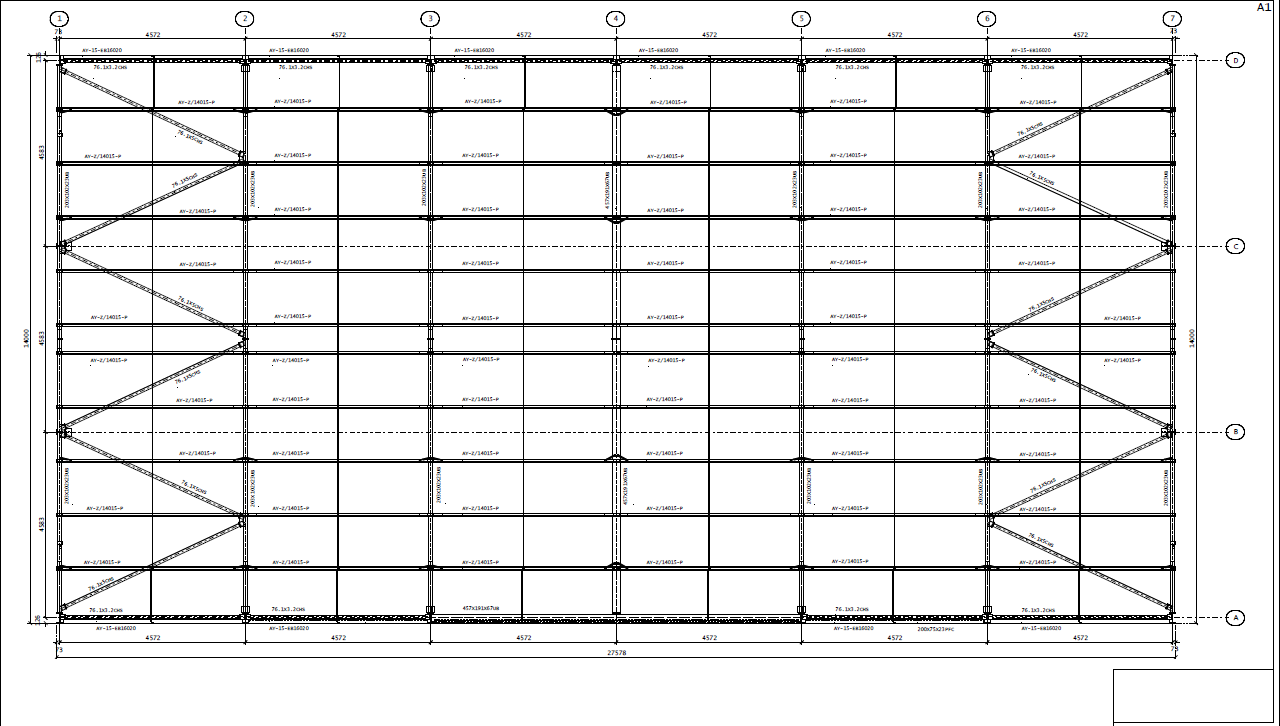

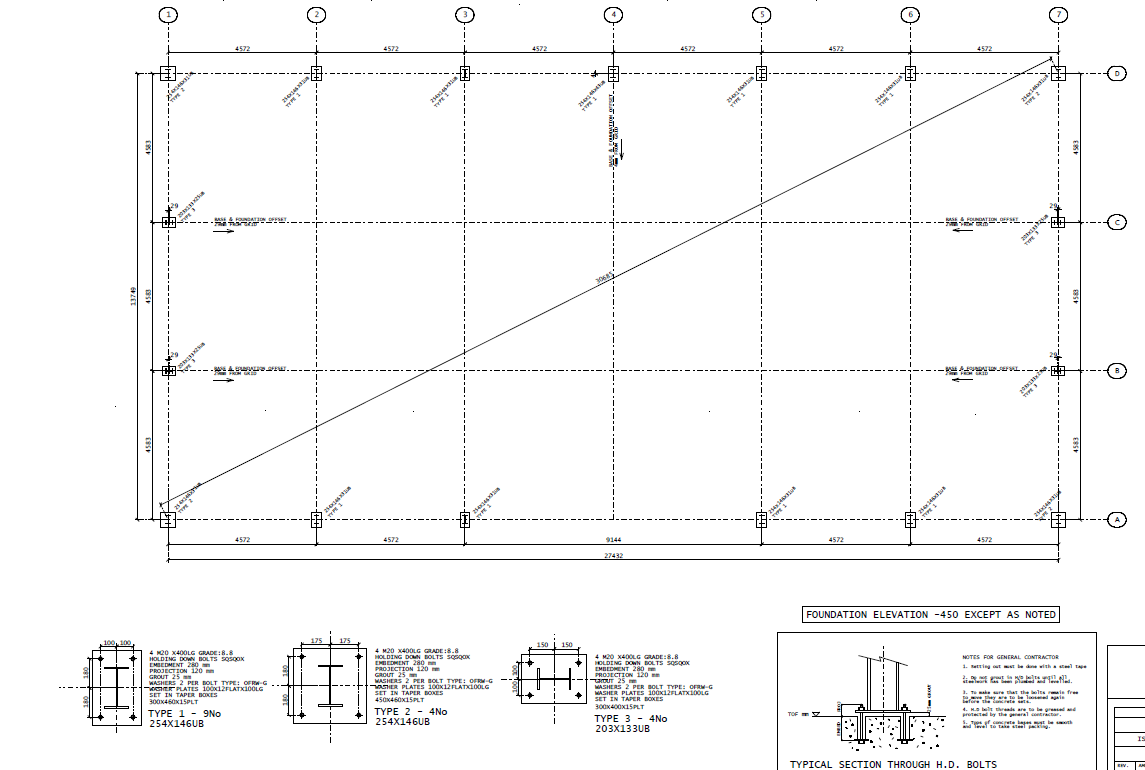

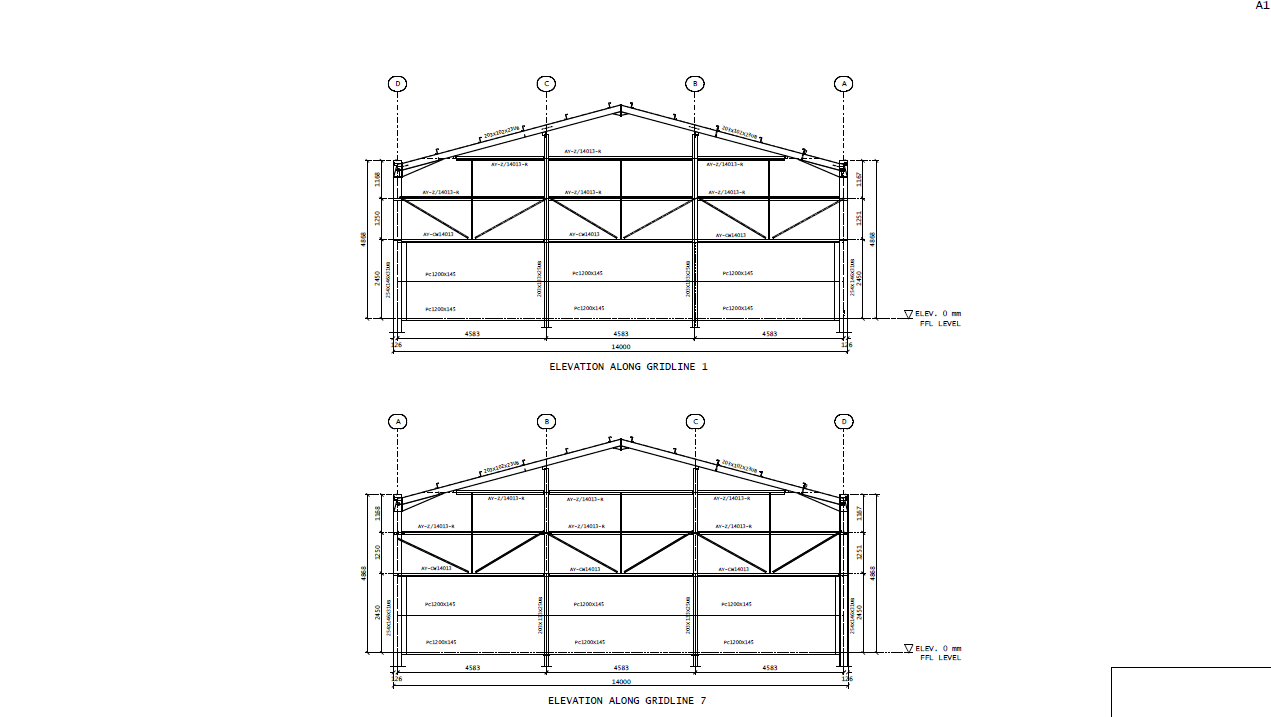

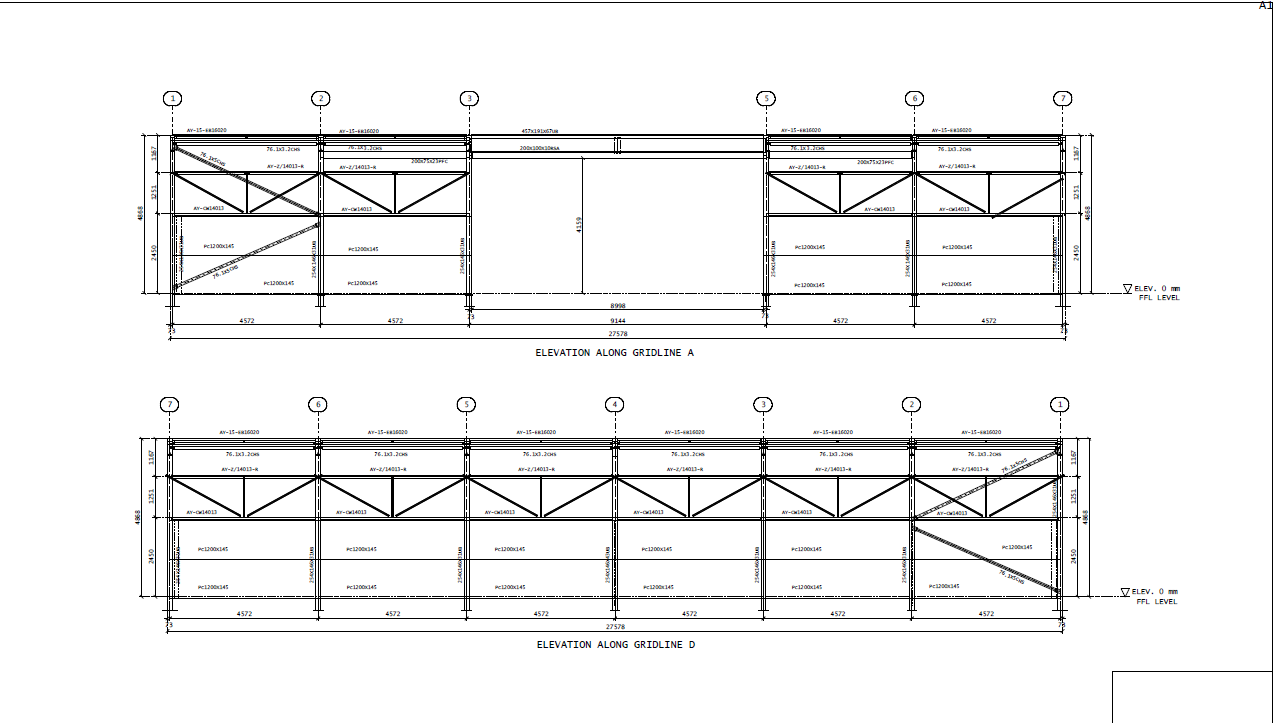

The building has been designed in accordance with a full structural calculation and drawing package.
Note: Structural steelwork to be manufactured to EN1090-2 - Execution Class 2.
Listing Value - £25,360 + VAT
Additional Notes:
A full fabrication pack has been produced for separate procurement of all required cold rolled sections and concrete panels
Galvanising yet to be completed, so a reduced rate can be negotiated if there is an interest in this being supplied self-colour.
Transport – POA
Contact: michael@merchantsteelsolutions.com
